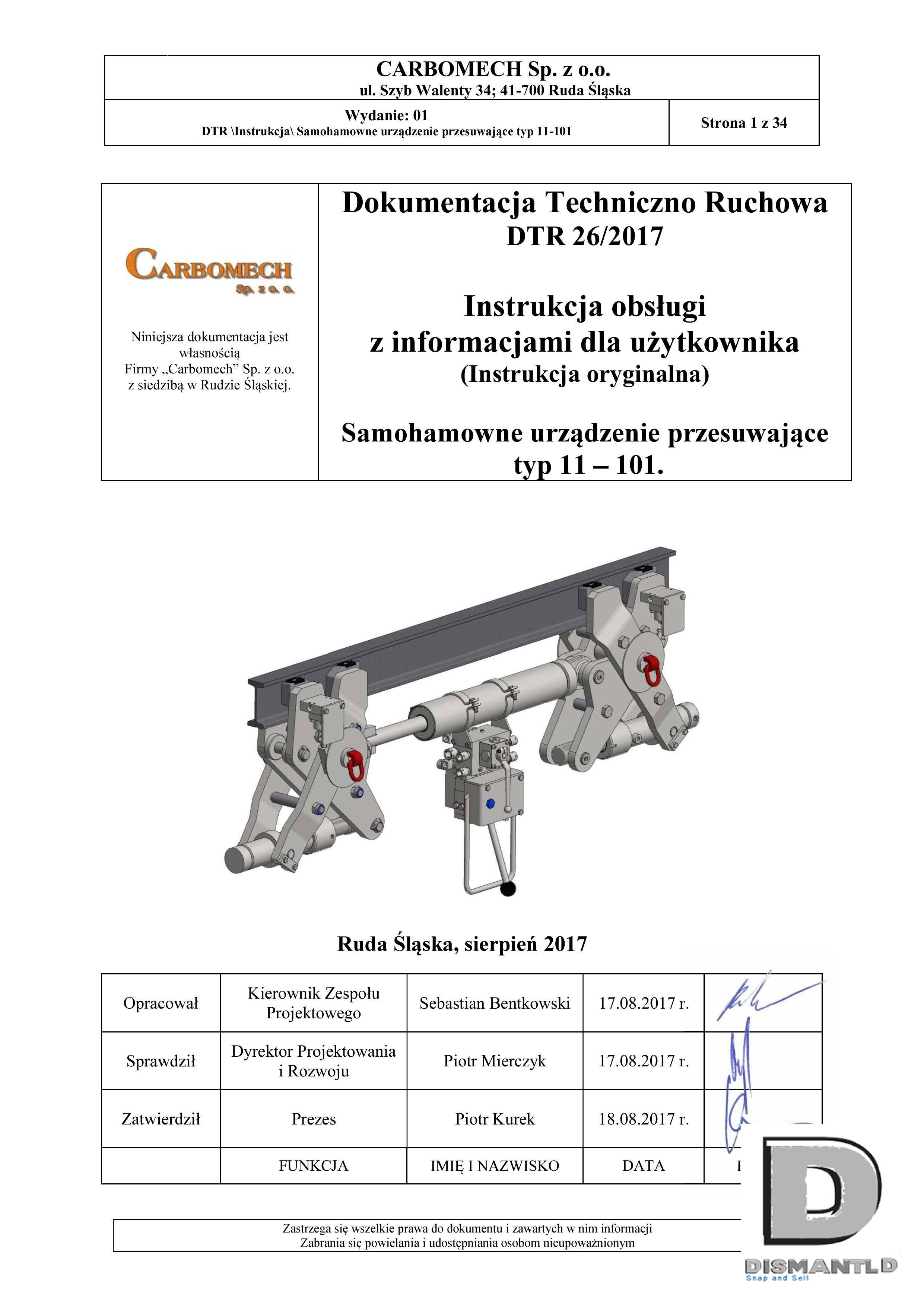

Mobile self-braking device Type: 11-101

Specifications
Mass 695 kg
Maximum thrust force 110 kN
Travel speed 35 m/h
Minimum supply pressure 21.0 MPa
Maximum supply pressure 25.0 Mpa
Working fluid: hydraulic oil, HFA emulsion
Rail profile I 155, I 140E, I 140V
Track gradient max. 27°

https://www.youtube.com/ watch?v=TWjci-qmWqo

Destination:

Mobile self-braking device type 11-101 is designed as a drive for movement
On the running tracks of 155, 140E or 140V overhead roads.
A typical application of the device is to move a train with electrical equipment,
dust removal devices, cooling units, etc. as the face is moved.
Mobile self-braking device type 11-101 can be used in non-methane and methane mine Mines.

The device can be used on a track made of rails with a permissible longitudinal load on
joint not less than 110 kN.
The described product has:
EU declaration of conformity,
Certificate of Conformity (TR CU 012/2011) – EAEU RU-C-PL.HA 65.B.00389/19
Declaration of Conformity (TR CU 010/2011) – EAEU N RU-D-PL.HA 65.B.00389/19
Video:

https:// www.youtube.com/watch?v=TWjci-qmWqo&t=19s

Rear Stopper Type: 11-107

Specifications
Stopper length 950 mm
Stopper width 244 mm
Stopper weight 88 kg
Pulling or pushing force 110 kN
Travel speed max. 70 m/hProfile
Rail 155, 140E, 140V
Track gradient max. 27°

The rear stopper type 11-107 is designed to be installed at the end of a transport system moving on a
guides of monorails laid in non-methane and methane mine longwalls, as a brake
Device.
The stopper is designed to be installed in the transport system of a power train driven by a self-braking transport device of the type
11-101-105. It can be connected directly or in the transportation system
with another drive approved for use in mines.

The described product has:
Certificate of Conformity (TP TC 012/2011) – EAEU RU-C-PL.HA 65.B.00389/19
Declaration of Conformity (TP TC 010/2011) – EAEU N RU-D-PL.HA 65.B.00389/19
